Full Automatic Box Beam Roll Forming Line

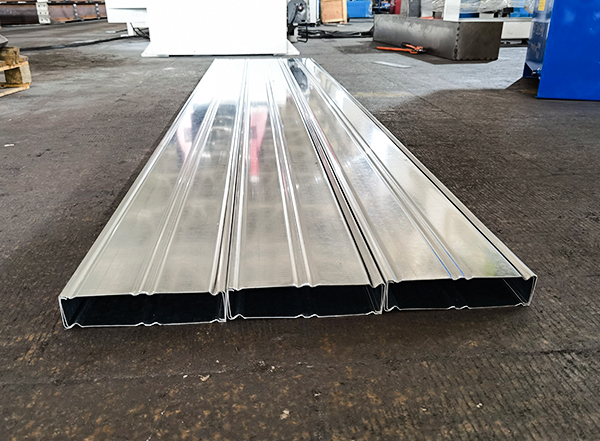

The box beam roll forming machines developed by SUNWAY are specifically engineered to produce high-strength beams for heavy-duty racking systems. In the current market, there are normally two production methods for these profiles: 1) two C-beams are first formed on a high-precision roll forming machine and then seamed in a combined unit to create a box beam; 2) one beam is formed directly on a single roll forming machine to achieve the final box profile.

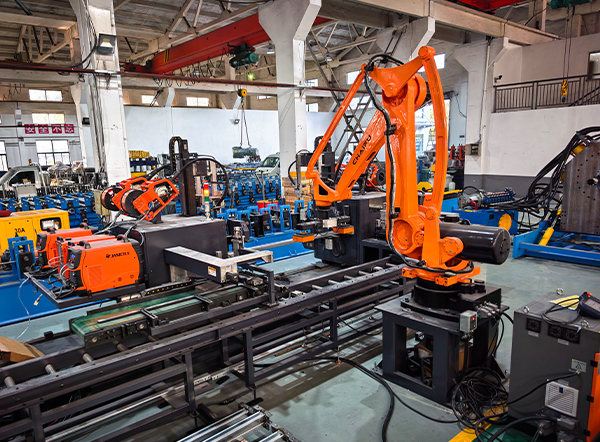

Our box beam roll forming line is a high-performance, full-automatic solution. It is specially designed and equipped with automatic welding and stacking systems, which significantly reduce labor costs and increase production efficiency. As a leading supplier, we ensure every box beam roll forming line is tested for maximum durability.

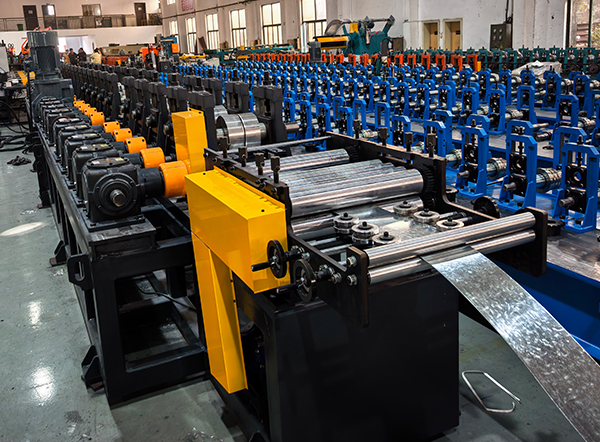

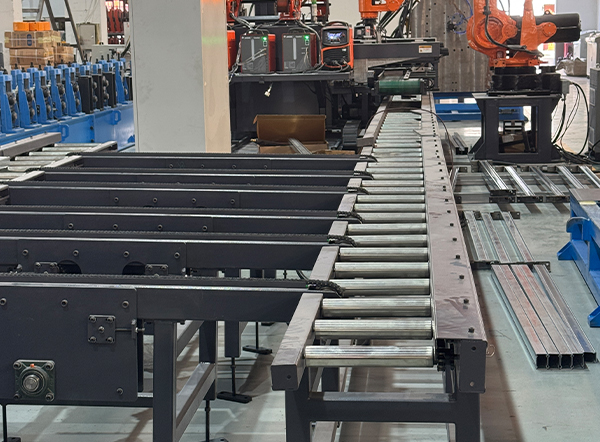

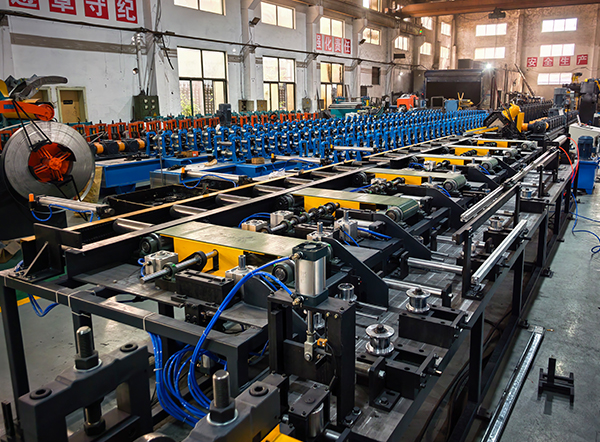

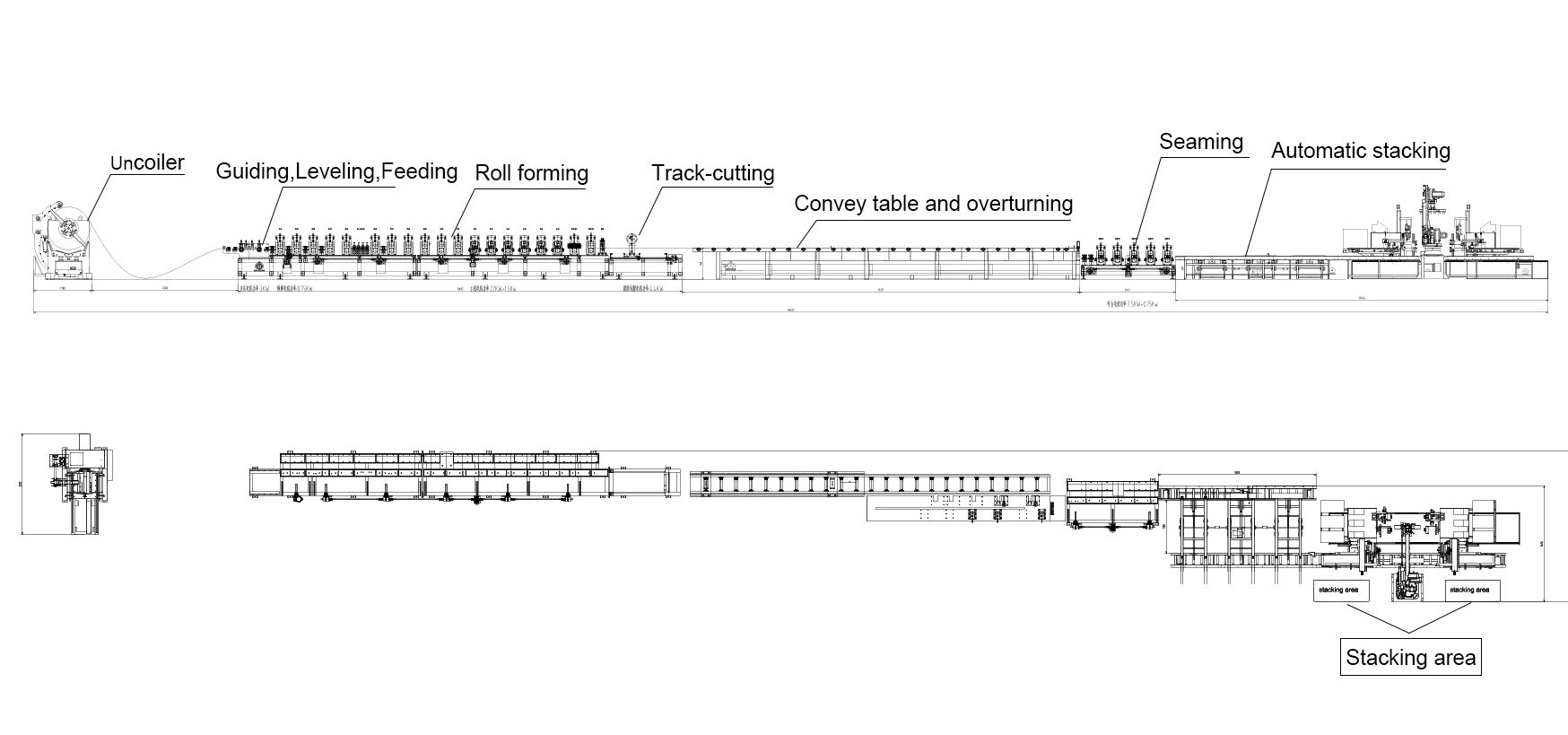

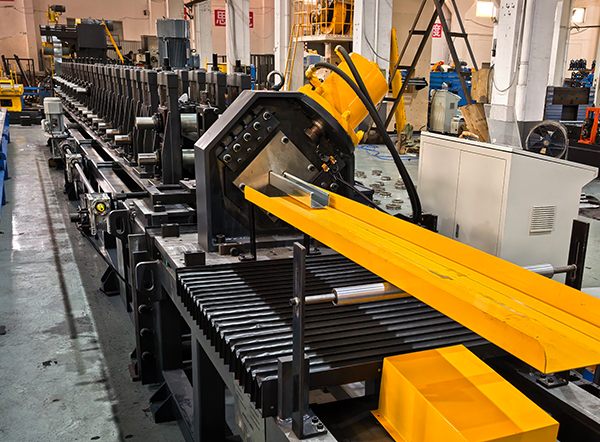

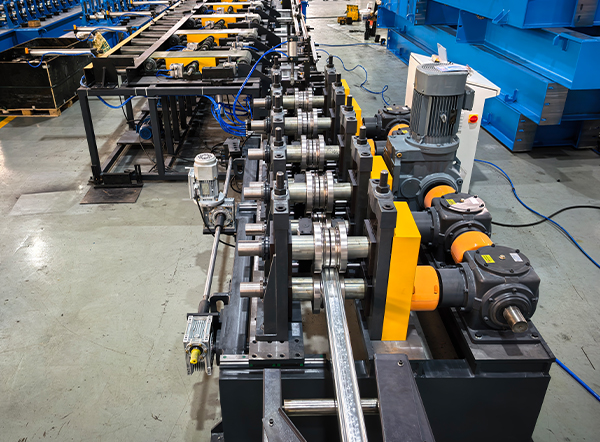

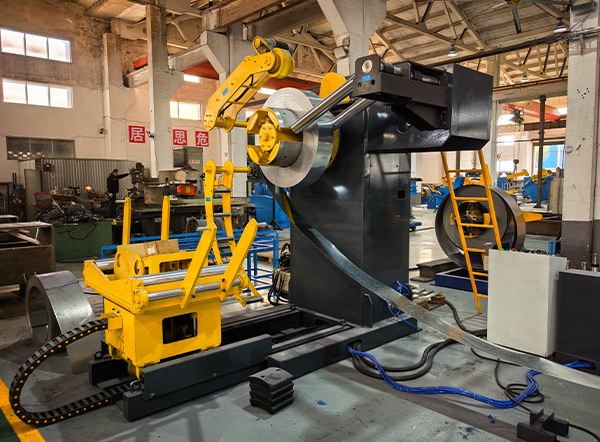

The whole line flow chart of this box beam roll forming line includes: Electric uncoiling — Feed guiding and leveling — Roll forming machine (gearbox drive system) — Fly cutting — Automatic conveying and turning table — Boxing machine (gearbox drive system) — Output table — Auto welding and stacking.

This intelligent roll forming machine can handle various beam sizes with a thickness range of 1.5–3.0mm. Processes such as uncoiling, feeding, forming, welding, and cutting are all automatically realized on one seamless line. In addition to these box beam roll forming machines, we provide specialized machinery for step beams, upright racks, and shelf boards—all essential components of a complete pallet racking system.

At Wuxi Sunway Machinery Co., Ltd., we manufacture a comprehensive range of equipment for warehouse pallet racking systems. We provide tailored solutions based on your specific drawings and budget, offering professional one-to-one service. Whichever box beam roll forming machines you choose, the quality of SUNWAY Machinery ensures you obtain perfectly functional profiles for your storage business. Whether you need a single roll forming machine or a complete production line, we are here to support your growth.

Box Beams in Heavy-Duty Racking Systems

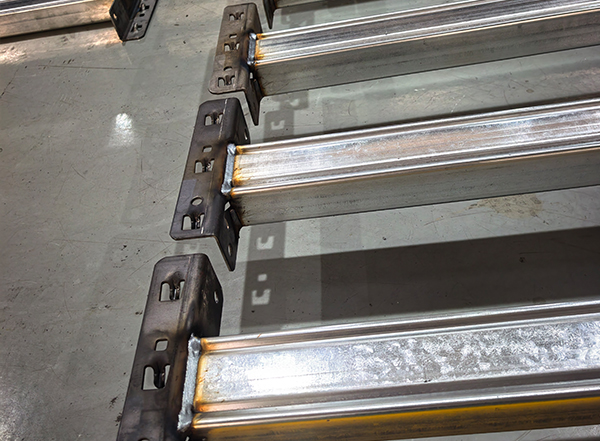

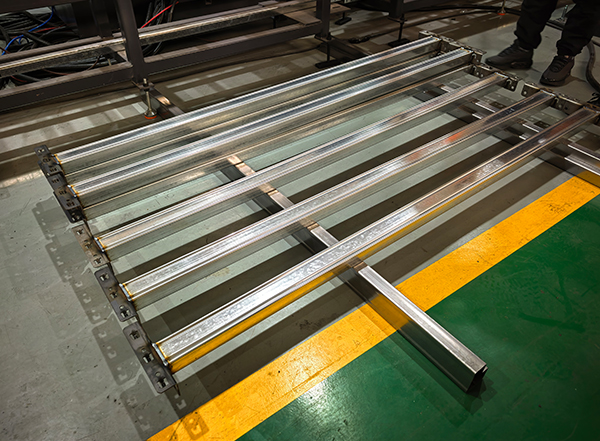

The warehouse systems shown below highlight the essential role of high-strength box beams in modern logistics. Every beam you see in these images is a direct result of the precision engineering provided by our box beam roll forming line. As a critical horizontal component, the box beam must withstand immense pressure, and our box beam roll forming machines are designed to ensure that the welding and structural integrity of each profile meet international safety standards.

In these large-scale storage facilities, the consistency of the profiles is key. Each roll forming machine integrated into our full-automatic line utilizes advanced technology to maintain strict tolerances. By choosing a SUNWAY box beam roll forming line, you are investing in equipment that translates directly into the high-quality, high-capacity racking systems displayed here.

Our commitment as a professional manufacturer is to provide a roll forming machine solution that is both efficient and reliable. These real-world applications demonstrate why global clients trust our box beam roll forming machines to build their warehouse infrastructure. Whether you need a standalone roll forming machine or a complete box beam roll forming line, SUNWAY ensures your finished products look and perform exactly like the professional systems in these photos.
